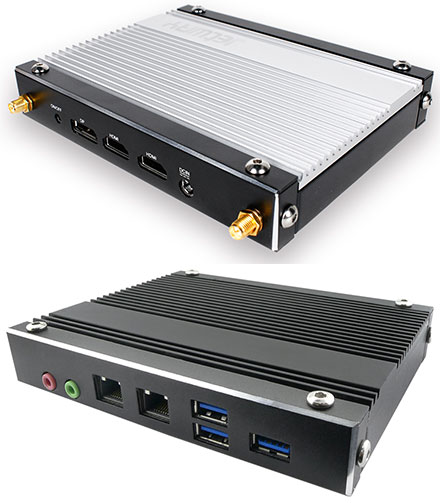

Jetway JBC900C59W-3160-B (Intel Braswell)

Jetway JBC900C59W-3160-B (Intel Braswell)

  • INTEL® Braswell--D J3160 SOC Chipset
  • Onboard INTEL® Braswell-D J3160 2.24GHz QC CPU
  • On board 4G DDR3L 1600 Memory
  • Support DirectX 12 3D Graphics Acceleration
  • Integrated HD Audio CODEC
  • Support 2*PCI Express Gigabit LAN
  • Support 1*DP Port and 2*HDMI Ports
  • Support 3*USB3.0 Ports
  • Support 1*M-SATA Socket (Full size)
  • Support 2*Mini PCI-E Socket (1*Full size +1* Half size)
  • Support Vibration protection function
  • Support Thunder Protection Function
  • 25mm thin, slice design


Share

449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Case Panel Material Aluminum
Color Option
Coating Requirement Spray Paint + Anode
Cooling Mode Fan less Fully sealed design
System Specification Form Factor uTX
Processor INTEL® Braswell-D J3160 2.24GHz/QC
GPU INTEL® HD Graphics 400
System Chipset INTEL® Braswell-D J3160 (SOC)
System Memory 4G/DDR3L
BIOS 64MB SPI Flash ROM
Ethernet 2*Realtek® RTL8111G Gigabit LAN
Audio Realtek® ALC662 HD Audio
Storage 1* M-SATA connector
WIFI Module Option
Optical Device N/A
Expansion 2*PCI-E mini card for WLAN
Display Output 1*DP+2*HDMI
Display Three Independent Displays
Resolution 3840x2160@ 30Hz、2560x1600@60Hz
I.O Port 3*USB3.0、1*Line-out、1*MIC、2*RJ45、1*Power Button、1*DC-Jack
Power Adapter DC-IN (9~24V)
OS Support Windows 7/8.1/10
Temperature Operating:-10 ~ +60℃
Humidity 20%~90% (non condensing)
Dimension 148.0mm*116.0mm*25.0mm
Certification FCC CE (Option)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
