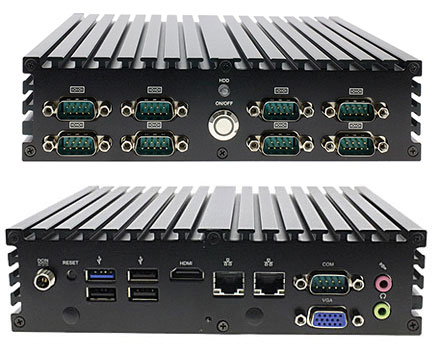

Jetway JBC390F541SCC-19-B (Intel Bay Trail) [9x COM]

Jetway JBC390F541SCC-19-B (Intel Bay Trail) [9x COM]
  • JBC390F541CC19B

  • Fanless Intel Celeron Bay Trail J1900 SoC Processor
  • Embedded Long-life Series, Planned Lifecycle Through Q1’2019
  • 9 * COM ports
  • ECO-design for EuP/ErP
  • Expandable functions like Gigabit LAN or COM ports via different PCIe Expansion cards
  • Cableless Design
  • Intel® Bay Trail-D J1900 SoC Processor
  • One CH SO-DIMM / DDR3L 1333/1066MHz (Max. up to 8GB )
  • 2.5” SATA Device (SATA-22P) & mSATA * 1
  • Suitable for Networking Server System / Industrial Control System /  I.o.T


Share

579.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model Name JBC390F541AA-1900-B JBC390F541WAA-1900-B
Part Number HBJC390F541AA19B HBJC390F541WAA19B
Motherboard Specification
CPU Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail
Memory 1 * 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)
Graphics Intel HD Graphics
LAN 10 * Intel i211AT Gigabit LAN
Audio Realtek ALC662 HD Audio
Storage 1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD
1 * mSATA/mini-PCI Express shared slot (Full-size)
Wireless / Mini-PCIE Slot 1 * Mini-PCI Express slot (Full-size) Wireless 802.11 b/g/n
USB Embedded 1 * USB 3.0 and 3 * USB 2.0
Chassis Specification
Product size 185 (W) * 165 (D) * 48 (H) mm
Color Black
Storage Bay 1 * 2.5" Drive Bay (Only support SATA 2.5" HDD or SSD)
Front I/O Port 1 * Power Button
1 * HDD LED
8 * RJ-45 LAN ports
Rear I/O Port 1 * +12V DC-in jack
1 * Reset Switch
1 * USB 3.0 ports
3 * USB 2.0 ports
1 * HDMI
2 * RJ-45 LAN ports
1 * Serial port (RS232/422/485)
1 * VGA port
1 * Line Out jack
1 * MIC In jack
2 * SMA Connectors for WiFi Antenna
Environment Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 ~ 85°C
Standard Accessory √ 60W AC-DC Adapter x1
√ Power Cord x1
√ Wall Mount Kit
√ DIN RAIL x2
√ CD Disk x1
√ Manual x1
√ WIFI antenna (with HBJC390F541W model)
Functional Networking Appliance, Firewall/Router, Industrial Contol, Digital Security, Embedded System
Certificate CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
