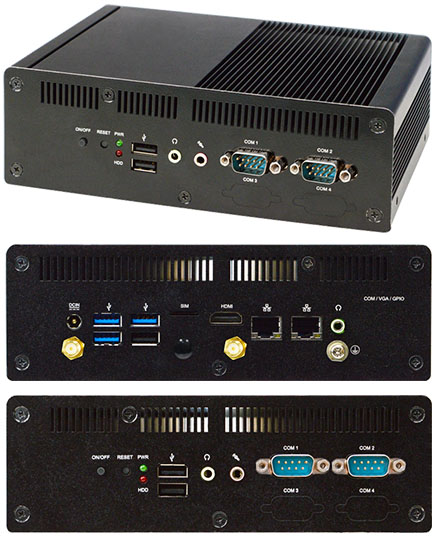

Jetway HBFDF94Z-00B (Intel Apollo Lake, 9-36V DC-in, WLAN)

Jetway HBFDF94Z-00B (Intel Apollo Lake, <b>9-36V DC-in, WLAN</b>)

  • Intel® Apollo Lake SoC Processor (Default: J3455)
  • Support 1 * SO-DIMM DDR3L-1866MHz up to 8GB
  • All-aluminum body, produced by casting process
  • Support Wide Voltage 9~36V DC-in




Share

539.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 MB Model – MF94-00B (J3455 CPU_10W, Default)
– MF94-02B (J3455 CPU_10W, TPM2.0)
– MF94-90B (E3940 CPU_9.5W)
– MF94-92B (E3940 CPU_9.5W, TPM2.0)
 Part No Non-Wifi Mini PCIe ac WiFi card TPM2.0
– HBFDF94-00B (Default)
– HBFDF94-90B 		– HBFDF94Z-00B
– HBFDF94Z-90B 		– HBFDF94-92B
– HBFDF94Z-92B
 BIOS – AMI Flash ROM
 CPU/Chipset – Intel® Apollo Lake SoC Processor (Default: J3455, TDP 10W)
 Memory – 1* SO-DIMM slots DDR3L-1866MHz up to 8GB
 Network – 2* Intel® GbE (I211-AT)
 Storage – 1* M.2 M-key 2242 slot for SSD
– 1* 2.5” Drive
 Expansion – 1* Full size Mini PCIe slot (USB2.0/PCIex1)
– 1* M.2 B-key 3042 slot (USB3.0/PCIex1)
 Rear Panel I/O – 2* RJ45
– 1* HDMI (Max. Resolution: 3840×2160@ 30Hz)
– 1* SIM Card slot
– 1* Line-out
– 1* DC-in (9~36V)
– 1* USB2.0
– 3* USB3.1 (Gen.1)
 Front Panel I/O – 1* Power SW, 1* Reset
– 1* Power LED, 1* HDD LED
– 1* MIC
– 1* Line-out
– 2* COM (COM1 support RS485)
– 2* USB2.0
 Power Source – Adapter / AC 90~240V input / DC19V-90W
– MB: support 9~36V DC-in
 Compliance – CE, FCC, LVD, RoHS, ErP Ready
 Temperature Operating Temperature:
– J3455 CPU: HBFDF94-00B / HBFDF94Z-00B: 0 ~ 50° C
– E3940 CPU: HBFDF94-90B / HBFDF94Z-90B / HBFDF94-92B / HBFDF94Z-92B: -40 ~ 70° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 90%, non-condensing
 Dimensions – 193 (W) x 142.4 (D) x 62 (H) mm
 OS Support – Windows 10, Linux
 Warranty – 2 Years limited warranty
 Packing – Net Weight: 2.2KG
– Gross Weight: 3.5KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
