MB Model
|
– MZ93-00B
|
Part No.
|
– HBJC386Z9300-J19B
– HBJC386Z9300I-J19B (support M.2 ac WiFi)
|
BIOS
|
– AMI Flash ROM
|
CPU/Chipset
|
– Intel® Bay Trail SoC Processor (Default: J1900)
|
Memory
|
– Support 1 * SO-DIMM slots DDR3L-1333MHz up to 8GB
|
Network
|
– 2 * Intel i211-IT GbE
|
Storage
|
– 1 * M.2 M-key 2242/2280 slot (M2M, support SATA interface)
|
Expansion
|
– 1 * M.2 E-key 2230 (M2E, support USB 2.0/PCIex1 interface)
– 1 * M.2 B-key 3042 slot (M2B, support USB 3.0 interface)
|

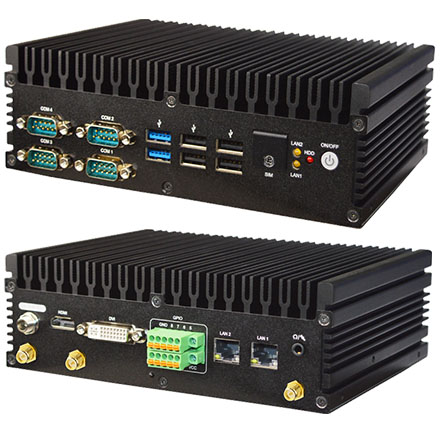

Rear Panel I/O
|
– 2 * RJ45
– 1 * DVI-I (Max. Resolution: 1920 * 1200@60Hz)
– 1 * HDMI (Max. Resolution: 1920 * 1200@60Hz)
– 1 * 8 bit GPIO
– 1 * Line out & MIC combo
– 1 * DC-in (Lockable type)
|
Front Panel I/O
|
– 1 * Power SW + Power LED
– 1 * HDD LED , 2 * LAN LED
– 1 * SIM Card slot
– 4 * COM (COM1_support RS485)
– 4 * USB2.0
– 2 * USB3.0
|
Power Source
|
– Adapter / AC 90~240V input / DC12V-60W
– MB : support DC 9~24V input
|
Compliance
|
– CE, FCC, LVD, RoHS, ErP Ready
|
Temperature
|
– Operating Temperature: -40 ~ 70° C (Under the condition of using M.2 interface SSD)
(The test environment is closed and windless)
– Storage Temperature: -40 ~ 80° C
– Humidity : 10% ~ 90% RH @40°C (non-condensing)
|
Dimensions
|
– 185 (W) x 142 (D) x 60 (H) mm
|
OS Support
|
– Windows 10, Linux
|
