NORVI X-Q4 (Extension Modul f. Norvi X, 4x Transistor Outputs)

NORVI X-Q4 (Extension Modul f. Norvi X, 4x Transistor Outputs)
  • Norvi X Series !
  • 4x Transistor Output !
  • Extension !

  • 4 × Transistor Output channels
  • High-side switching (up to 24V DC)
  • Full optical isolation for circuit protection
  • Integrated fuse and surge protection per channel
  • Individual LED status indicators
  • Designed for NORVI X modular architecture
[more]

Share

89.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart

  • 4 × Transistor Output channels
  • High-side switching (up to 24V DC)
  • Full optical isolation for circuit protection
  • Integrated fuse and surge protection per channel
  • Individual LED status indicators
  • Designed for NORVI X modular architecture

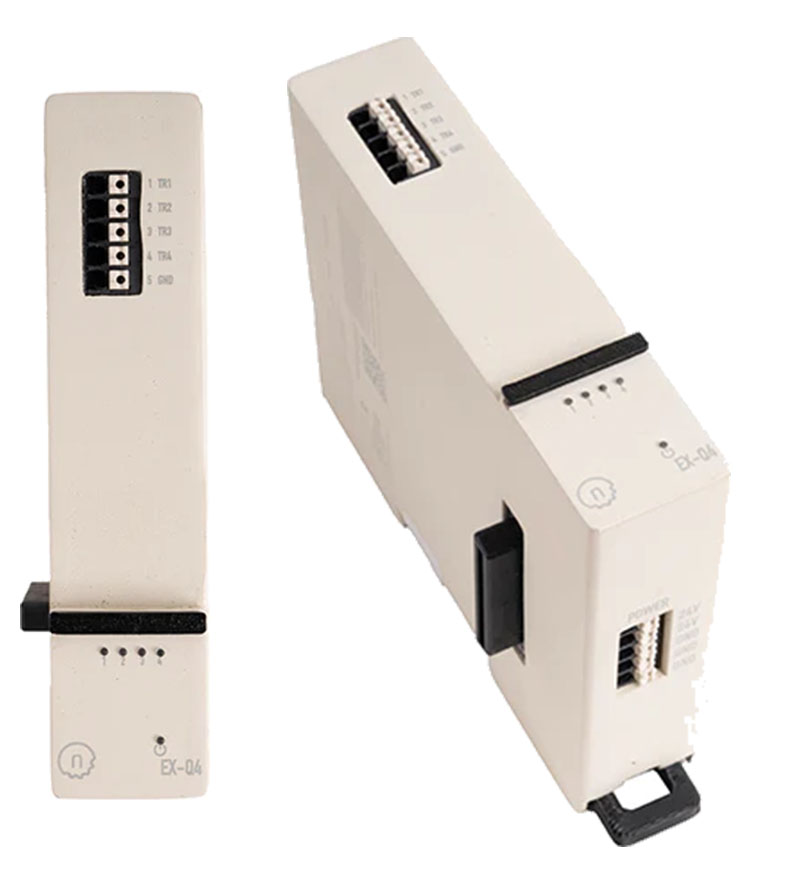

The NORVI X-Q4 is a 4 x Transistor Outputs Expansion module designed for the NORVI X modular controller platform.

It provides four high-side switching channels suitable for driving industrial actuators, relays, and solenoids. The outputs are optically isolated for circuit protection and utilize high-side MOSFET switches, enabling reliable control of DC loads with integrated fuse protection for industrial safety.



Range of product NORVI X
Product type /
Model		 Expansion Module f. NORVI X Series
NORVI X-Q4
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Number of Outputs4 Transistor Output Channels
Output TypeHigh-Side Switch
Switching TransistorP-Channel MOSFET
Isolation TypeOptocoupler Isolation
Operating Voltage24V DC Nominal
Overcurrent ProtectionPer-channel resettable PTC fuse
Gate ProtectionZener Diode clamp
Switching FrequencyHigh-Speed
Output DiagnosticsIndividual LED indicators
Field Connector5-Pin Terminal Block (TR1, TR2, TR3, TR4, GND)
Data sheet Download (PDF)
Data sheet Print view
